GPU WATERBLOCK FOR GIGABYTE GeForce RTX 5090

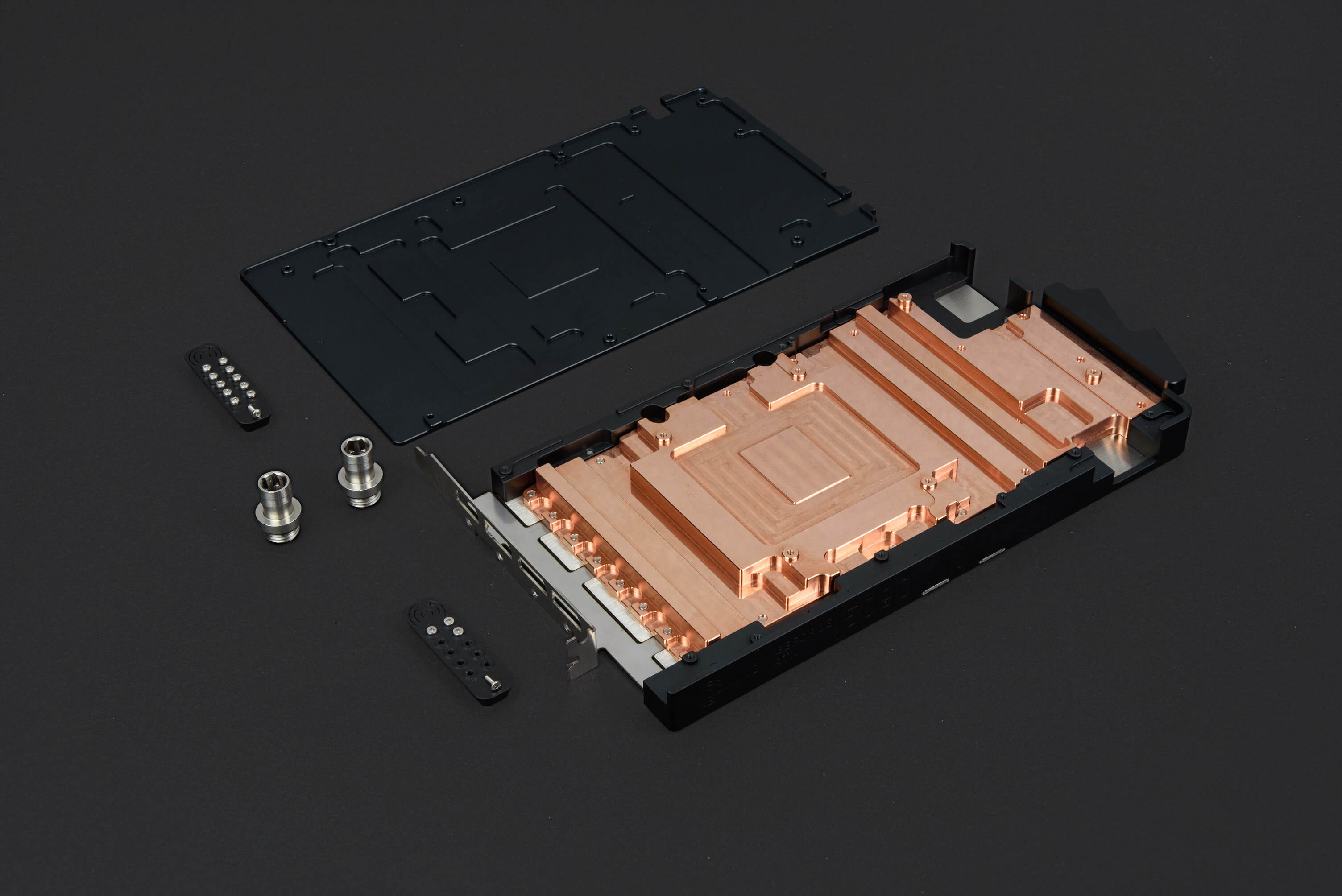

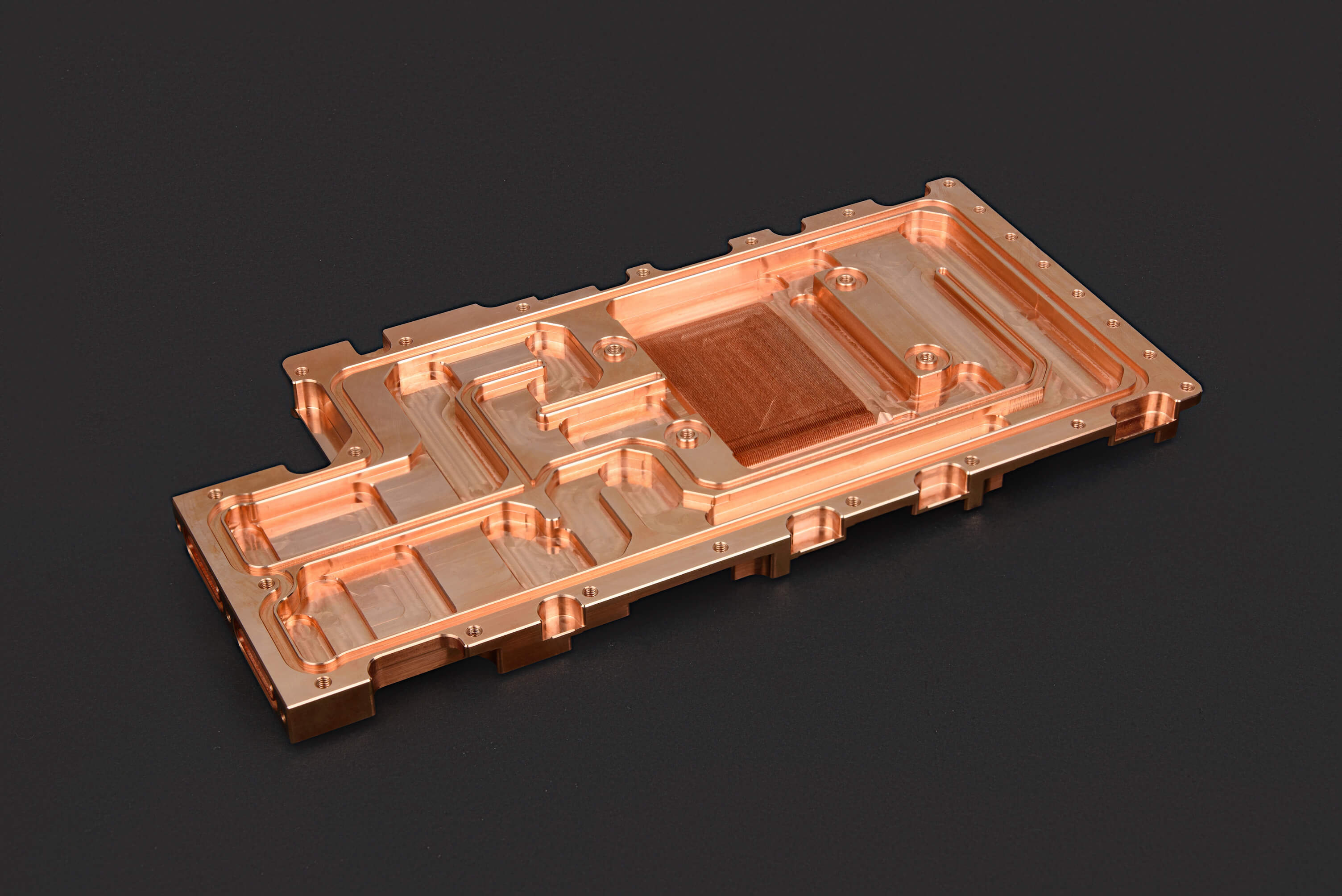

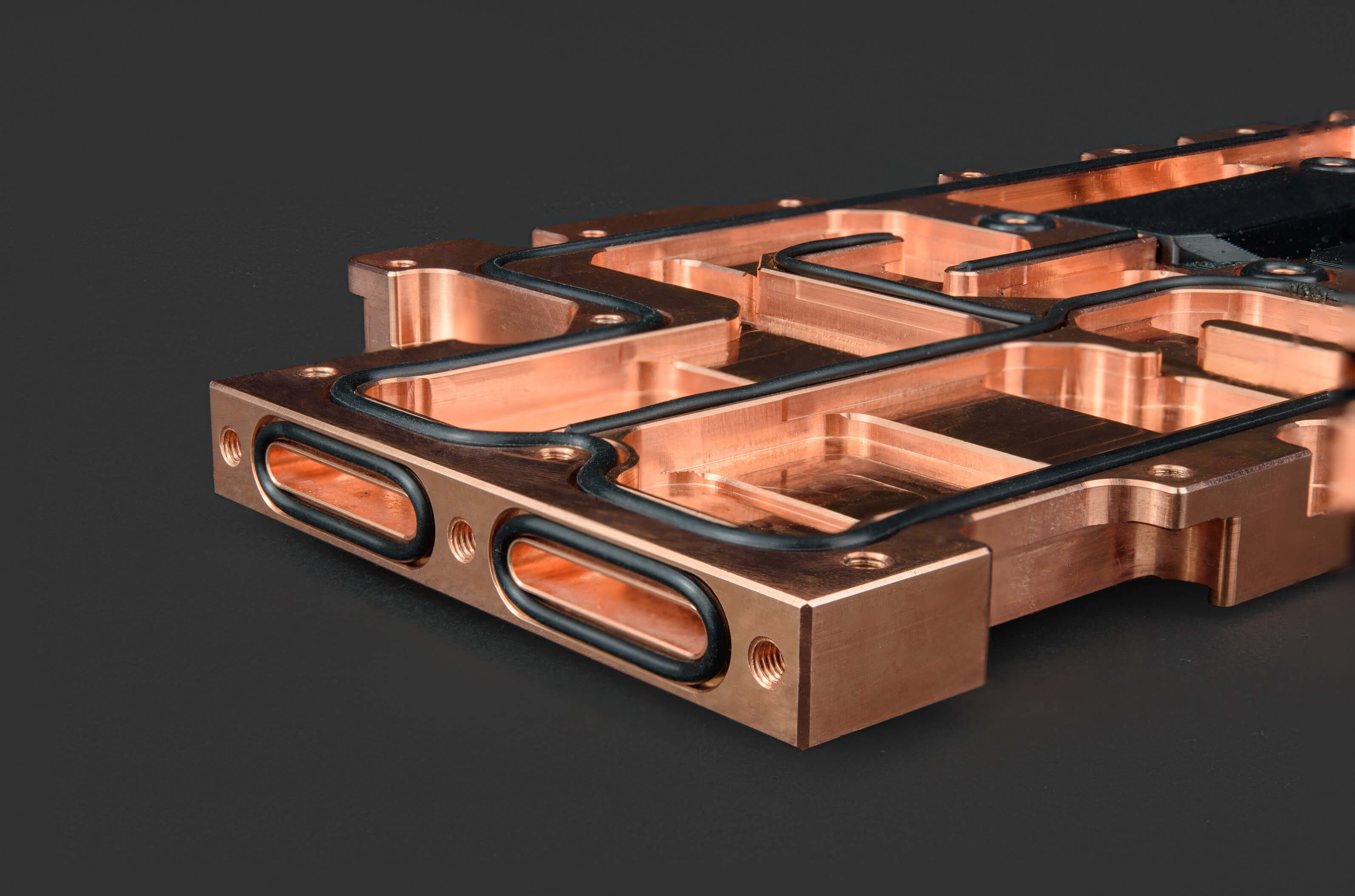

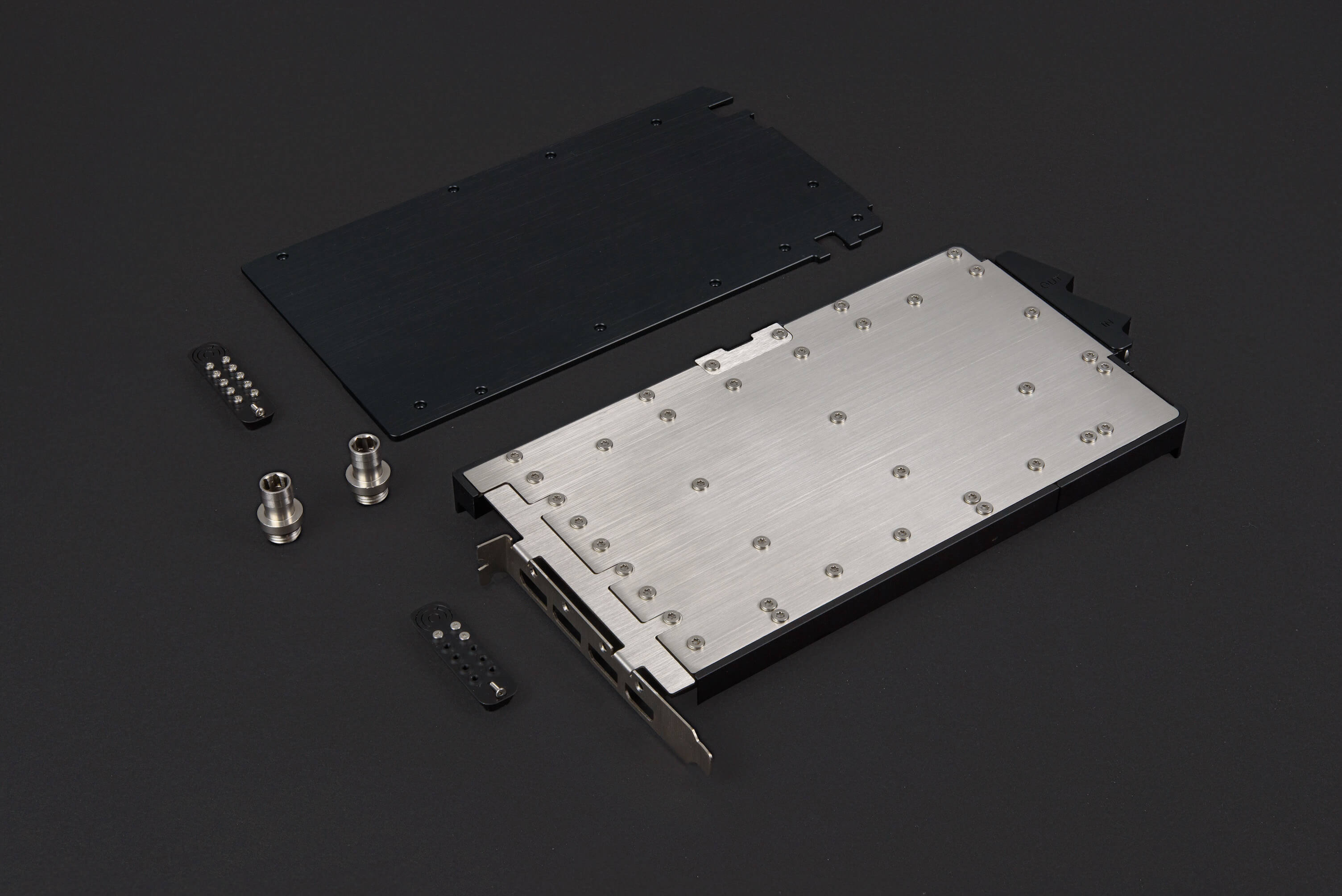

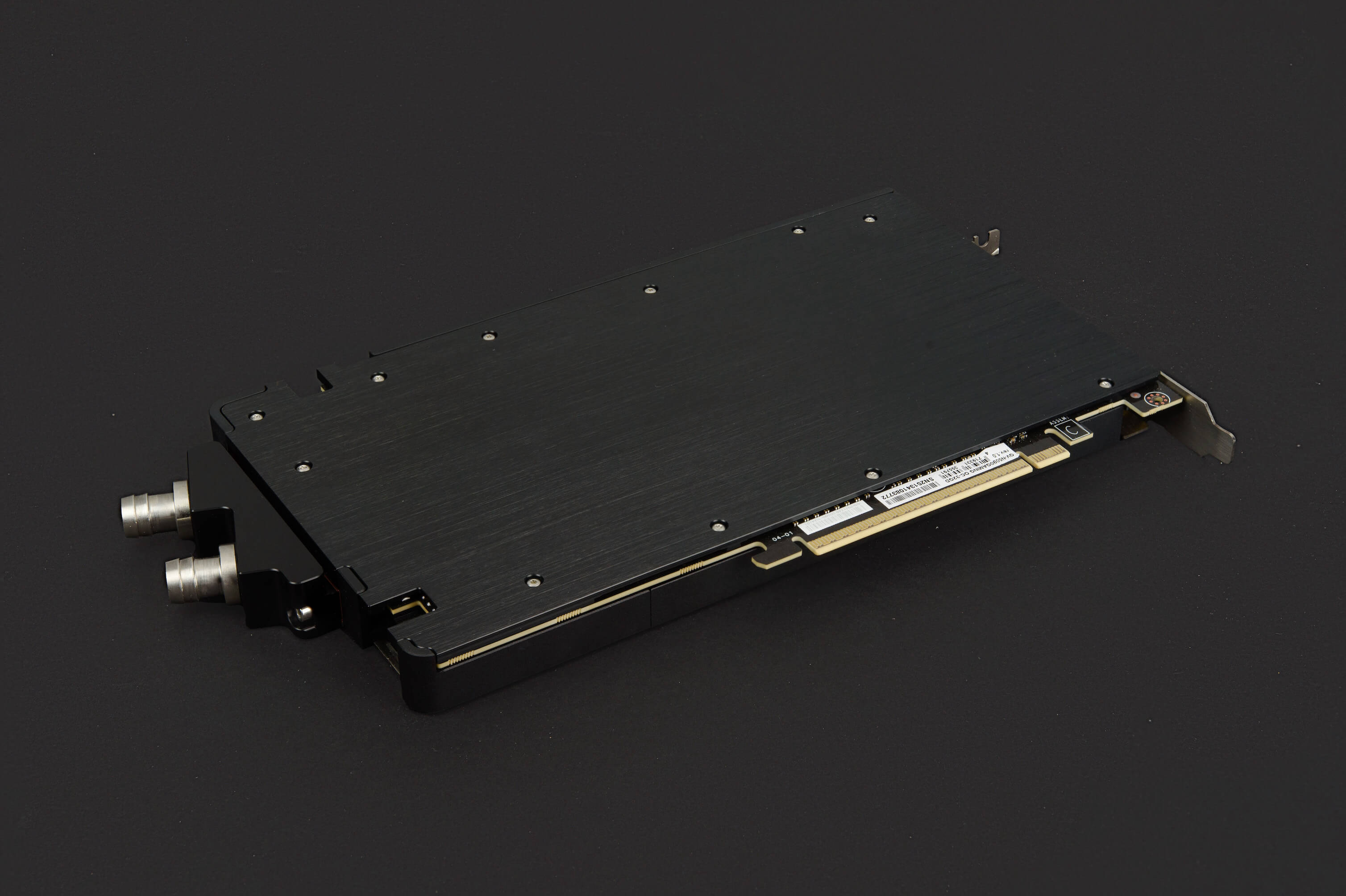

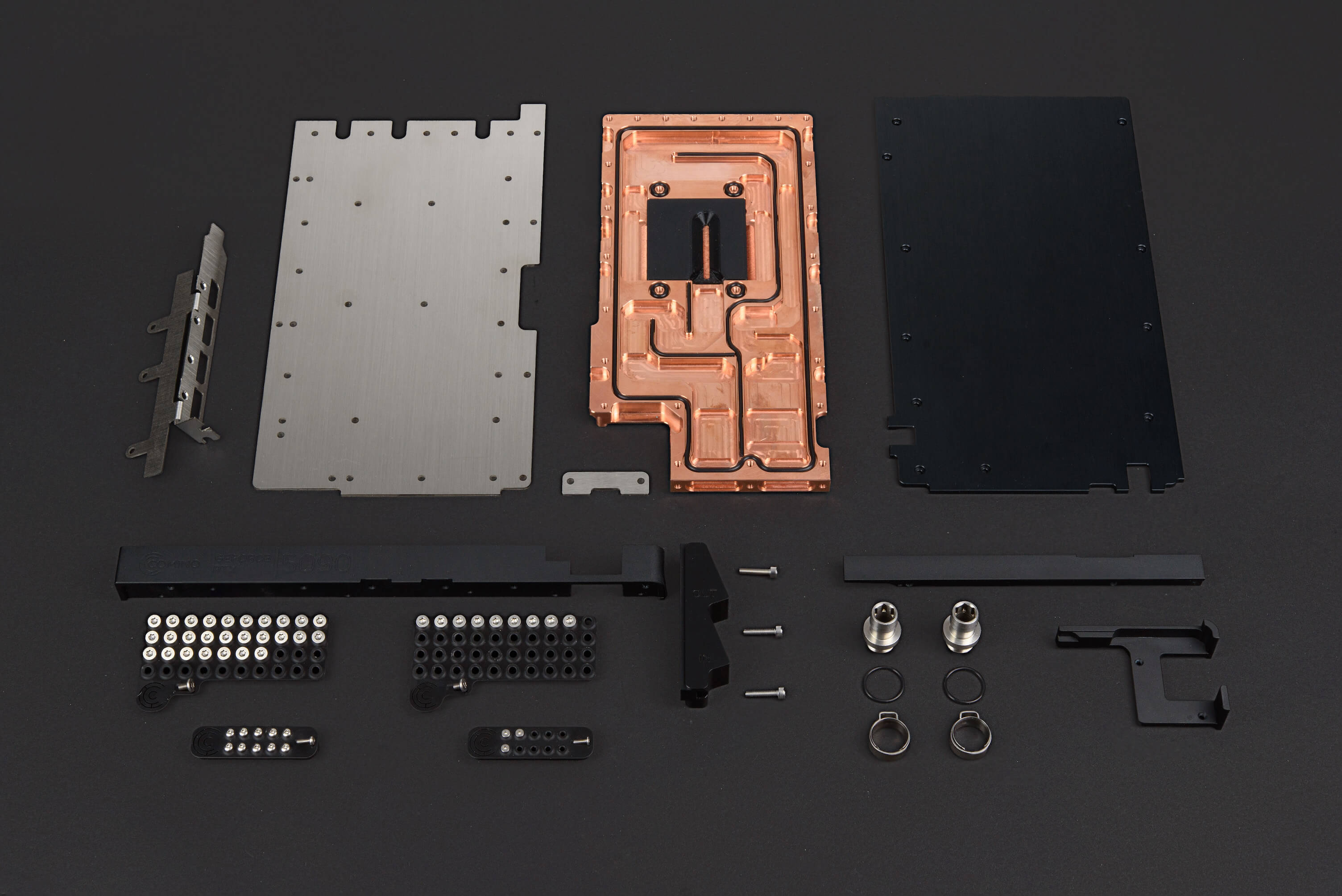

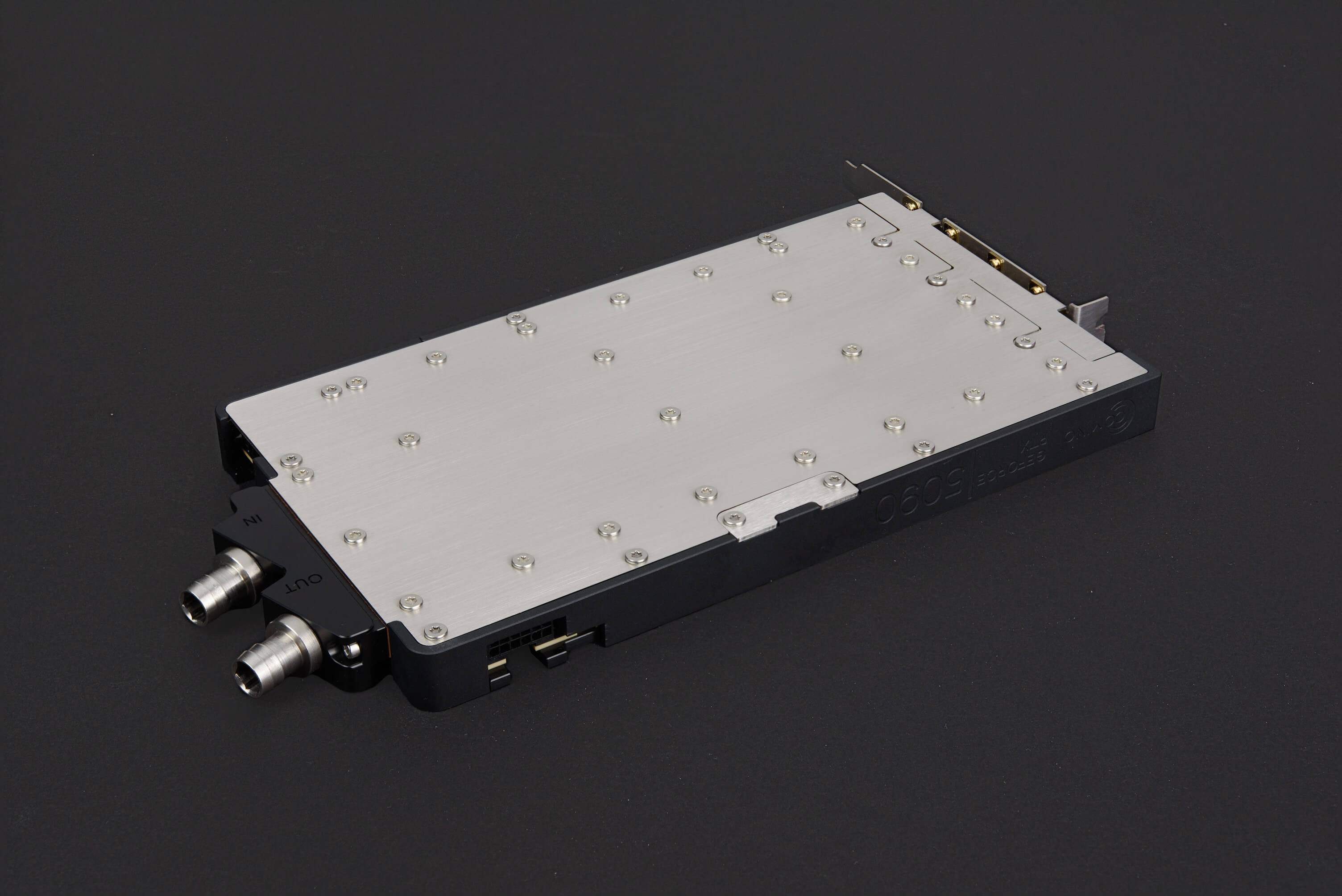

GPU WATERBLOCK FOR GIGABYTE GEFORCE RTX 5090, Cu-Steel

1. GPU Manufacturer: GIGABYTE
2. GPU Model:
   • ‍GeForce RTX™ 5090 WINDFORCE 32G [GV-N5090WF3-32GD],
   • GeForce RTX™ 5090 WINDFORCE OC 32G [GV-N5090WF3OC-32GD],
   • GeForce RTX™ 5090 GAMING OC 32G [GV-N5090GAMING OC-32GD],
   • AORUS GeForce RTX™ 5090 MASTER 32G [GV-N5090AORUS M-32GD],
   • AORUS GeForce RTX™ 5090 MASTER ICE 32G [GV-N5090AORUSM ICE-32GD],
   • AORUS GeForce RTX™ 5090 XTREME WATERFORCE WB 32G [GV-N5090AORUSX WB-32GD],
   • AORUS GeForce RTX™ 5090 XTREME WATERFORCE 32G [GV-N5090AORUSX W-32GD]‍
3. Waterblock Materials: Copper, Stainless Steel, Plastic, NBR‍
4. Backplate and Frame Materials: Anodized Aluminum‍
5. Thread Adapter Materials: POM

‍Available Configurations

1. Comino GPU WCB for Gigabyte GeForce RTX™ 5090, Cu-Steel, Al-Black Backplate, Angular Adapter 2x G1/4" (SKU: 8706)

Key Features

1. Designed for NVIDIA GEFORCE RTX 5090
2. Fullcover Waterblock cools the GPU, GDDR, and the VRM altogether
3. Thermally-tested and quality guaranteed. Low ΔTo between the chip and inlet coolant temperatures is assured
4. Only non-corrosive materials (Copper, Stainless Steel, Aluminum, Plastic)
5. Heat dissipation increased up to 10 times as compared to the air-cooling
6. Single-slot PCI Design
7. Fittings on the Back — Server Ready
8. 90º Adapter Option — Workstation Ready

‍
